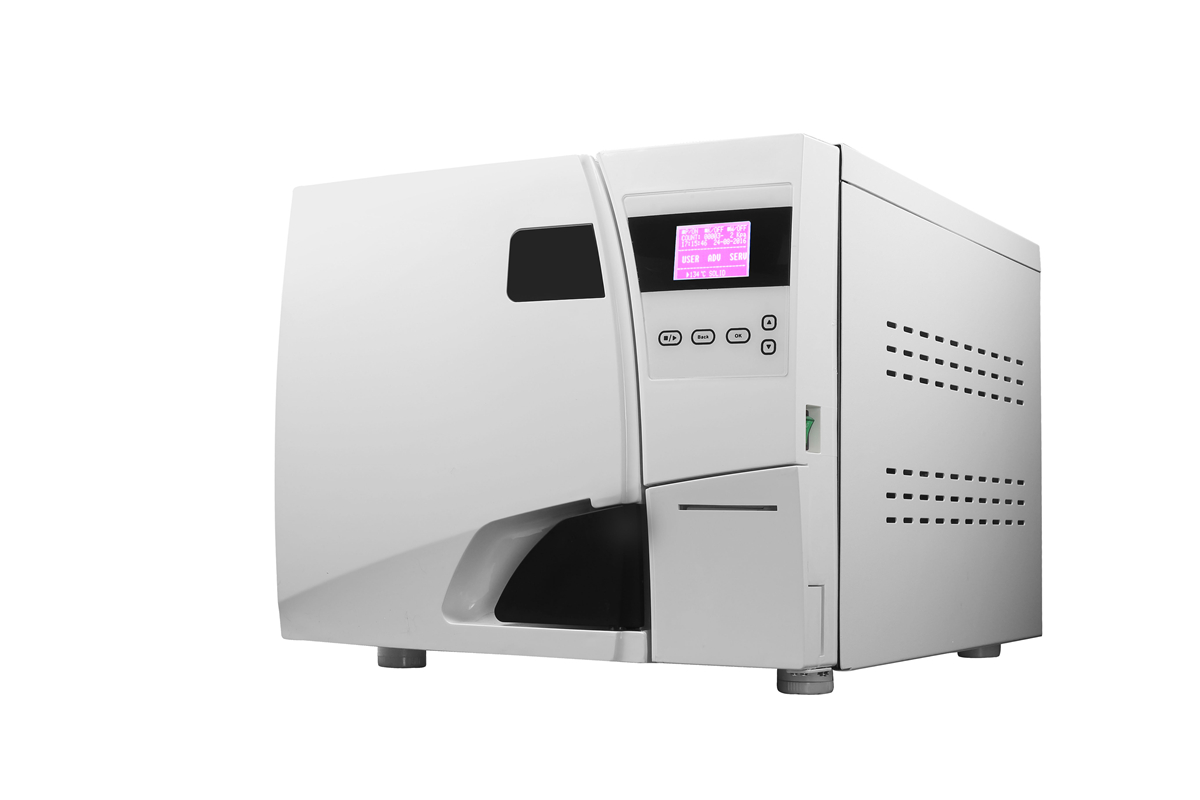

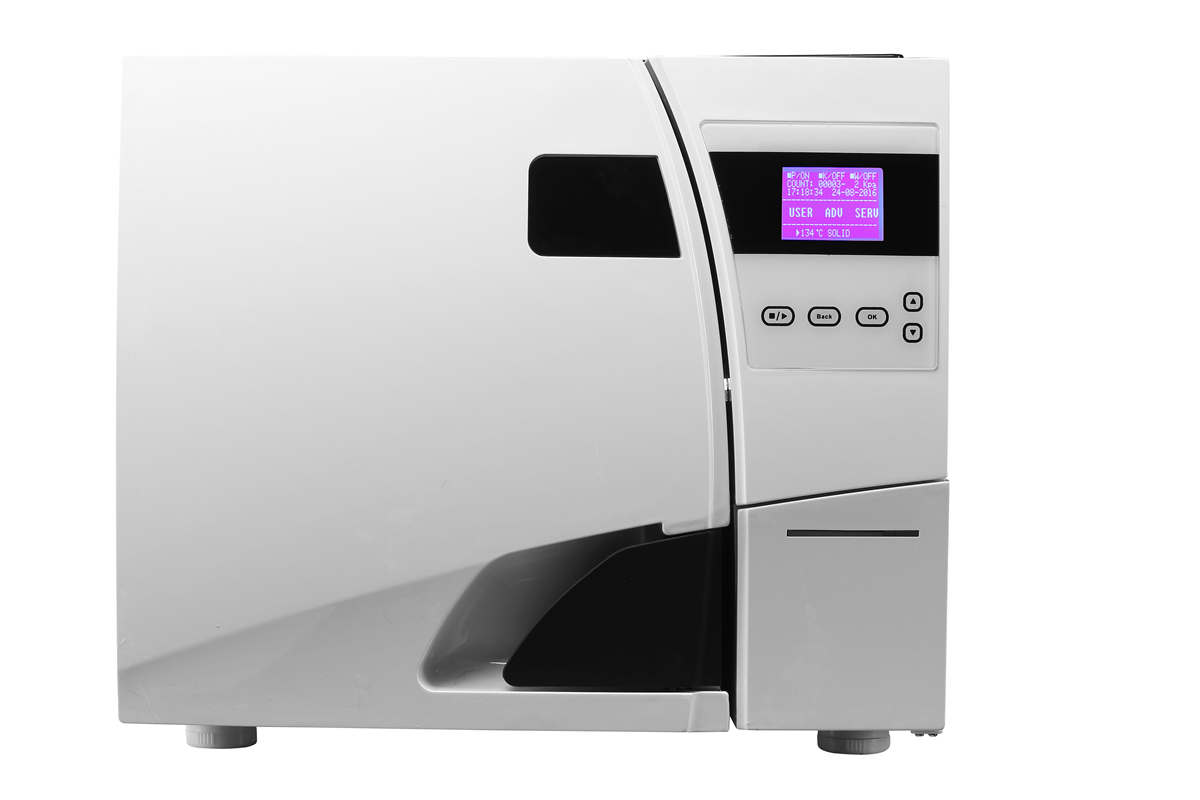

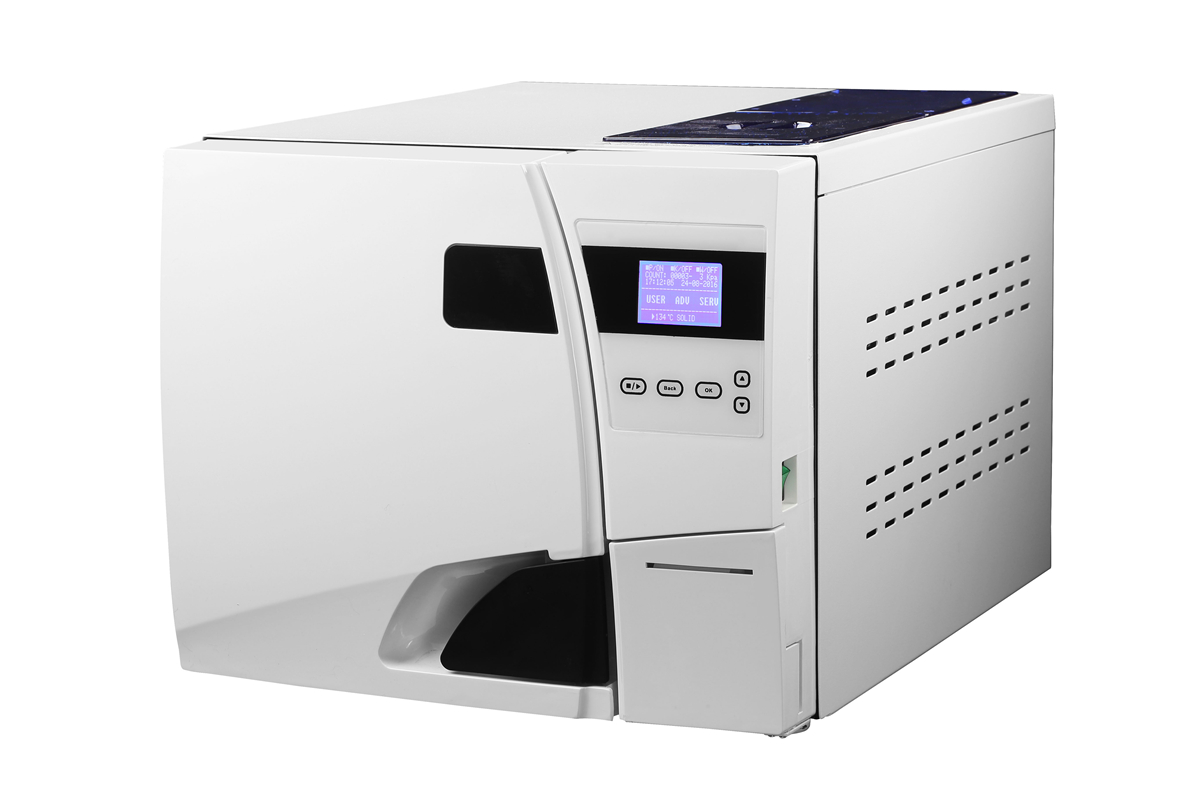

18Liter Autoclave/Steam Sterilizer

Benchtop Autoclave/Steam Sterilizer Code:LFSSBAA
Category:Class B

Model	LFSSBAA
Description	Small Autoclave
Class	B
Certification	ISO 13485
Standard	BS EN 13060:2004 + A2:2010
Frequency	50Hz
Plug	3 hole plug
Wattage	1950 VA
Sterilization temperature	105 - 134℃
Max working pressure	0.21-0.23MPA
Life span	5 years
Diameter of chamber	25 CM
Depth of chamber	35 CM
Volume of chamber	18 L
Material of chamber	Stainless steel 304
Colors available	White
Screen type	LCD
Screen size	6 X 4.25 cm
Language available	English, Italian, German,Chinese
Lock system of door	Mechanic + electrical lockers
User password	Yes
Output	Thermo printer & USB
Net weight	53 kgs
Gross weight / carton	61 kgs
Product size	61 X 50 X 43cm
Package size	73 X 57 X 51cm
Min size of table for installation	54 x 41.5 cm

Fully Automatic
8 Preset sterilization programs
Ster. Temp.: 105-134℃
Ster. Time: 4-60 min
Dry time: 1-25min
Vacuum Times: 1-10 times
B&D / Helix / Vacuum testing program
Cleaning Program
Printer & USB Output
Big Stainless Steel Water Tanks
High quality bacteria filter

User Password

Program	121℃ Solid	121℃ Hollow	121℃ Porous	121℃ Solid	121℃ Hollow	121℃ Porous
Vacuum Times	1	3	3	1	3	3
Temp (℃)	121	121	121	134	134	134
Pressure(KPA)	110	110	110	210	210	210
Time(Min.)	20	20	20	4	4	4

Program	Cotton	Prion	User defined	BD/Helix Test	Vacuum Test	Clean
Vacuum Times	3	3	User defined	3	1	3
Temp (℃)	134	134	User defined	134	/	105
Pressure(KPA)	210	210	User defined	210	-80	20
Time(Min.)	4	19	User defined	3.5	15	5

Warranty:

Two-years warranty for whole machine

Lifetime warranty for chamber

Lifetime maintenance

Standard packing Q'ty (PCS)

Autoclave 1

Power cable 1

Water drain pipe 1

Tray 3

Tray holder 1

Handle for tray holder 1

Fuse 2

Instruction manual 1

The working condition of the autoclave:

* Relative humidity: ≤80%

* Atmospheric pressure: >70kPa;

* Voltage:230VAC, 50Hz, 2500VA

* The highest working pressure: 0.21～0.23MPa

* The highest working temperature: 134～137℃

The requirements of transportation and storage:

* Environmental temperature range: 5~40℃

* Relative humidity: ≤80%

* No corroding gases

Warning:

* Please use a 3-hole socket, and ensure the socket has been connected well with the ground. Do not put the autoclave on a place that the power are difficult to be cut off.

* Do not use power with different voltage with which stated in this manual.

* Do not touch the plug or socket with wet hands.

* Do not pull, change, over-bend or twist the wires, and do not put heavy things on the wires.

* Do not put the autoclave on an unstable table.

* Do not block the door of autoclave, and cover the ventilation holes and radiation holes.

* Do not put anything on the top of autoclave.

* If you find any abnormal smell or sound during operation, please cut off the power immediately and contact your local distributor or us.

1. Application fields:

Dental Clinics, Veterinary (Pet Vet), Tattoo Shap, Nail(beauty) Salon, Laboratory,and so on.

1. Application fields:

Dental Clinics, Veterinary (Pet Vet), Tattoo Shap, Nail(beauty) Salon, Laboratory,and so on.
