3 Liter Autoclave/Steam Sterilizer

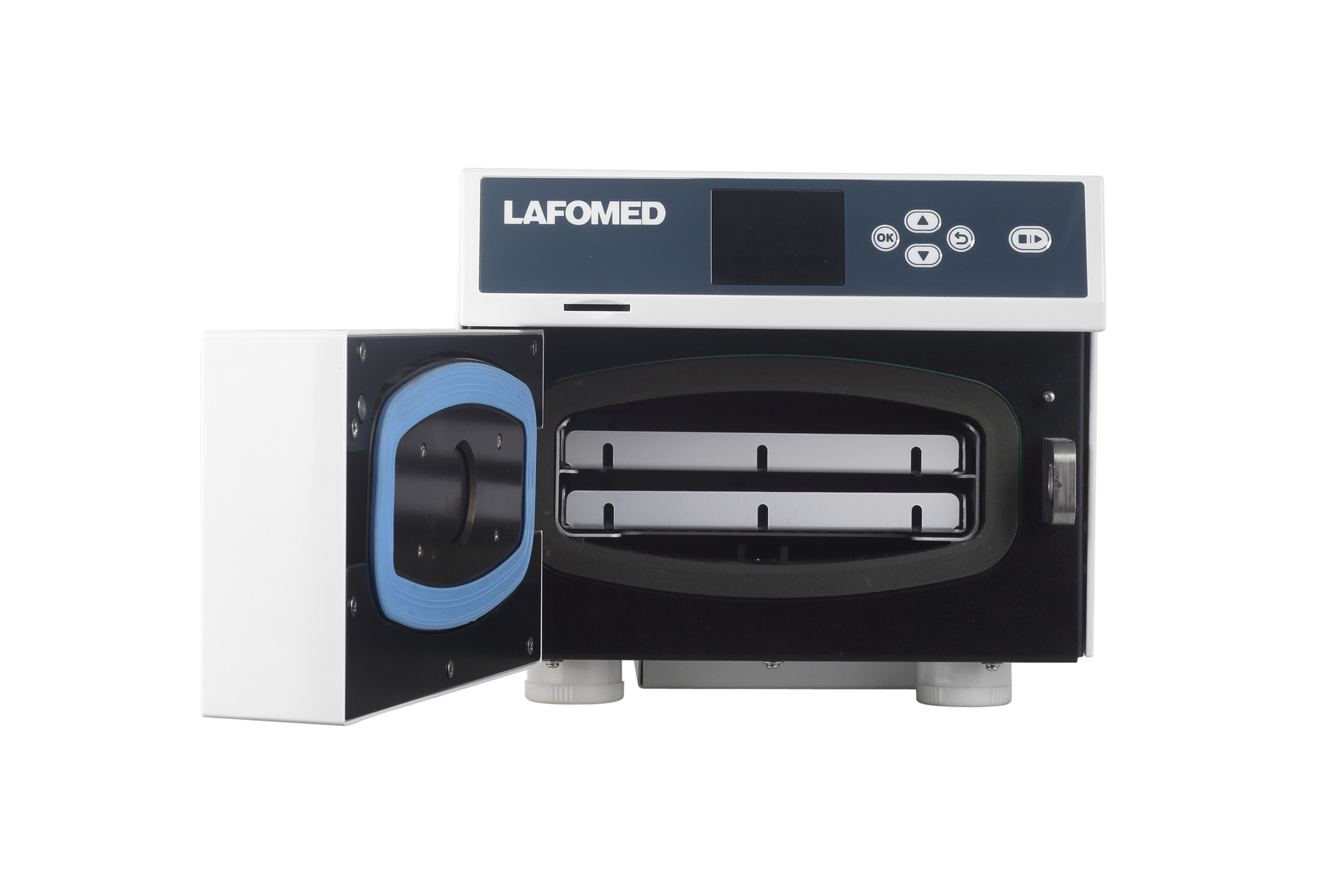

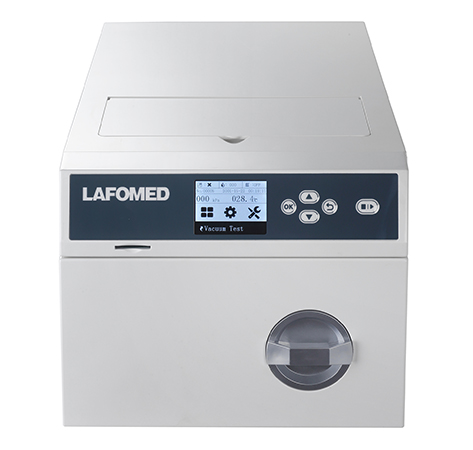

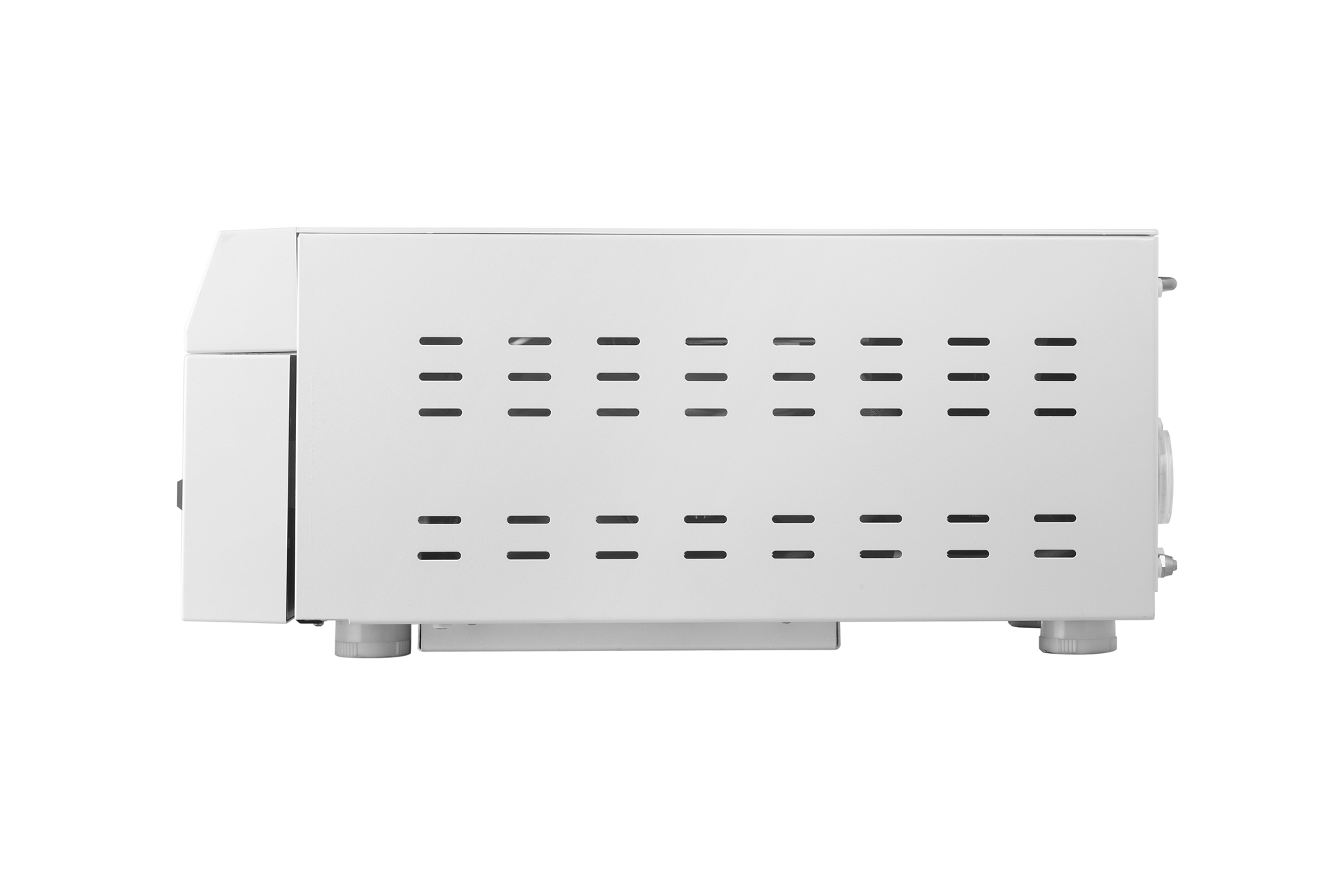

3Liter Autoclave/Steam Sterilizer （ECO）

Benchtop Autoclave/Steam Sterilizer Code:LFSS03AA
Category:Class B

Model	LFSS03AA
Description	Small Autoclave
Class	B
Certification	ISO 13485
Standard	BS EN 13060:2004 + A2:2010
Frequency	50Hz
Plug	3 hole plug
Wattage	2900 VA
Sterilization temperature	105 - 134℃
Max working pressure	0.21-0.23MPA
Life span	5 years
Chamber dimensions(WHL)	19.5 X 7.8 X 30.3CM
Volume of chamber	3 L
Material of chamber	Aluminum
Colors available	White
Screen type	LCD
Screen size	6 X 4.25CM
Language available	English, Chinese, Polish
Lock system of door	Mechanic + electrical lockers
User password	Yes
Output	Thermo printer & SD Card
Net weight	20 kgs
Gross weight / carton	24 kgs
Product size( WHL)	28.6 X 24.4 X 55.5cm
Package size(WHL)	34.0 X 29.5 X 64.0cm

Front loding and fully Automatic

User Password

4 Preset sterilization programs

B&D / Helix / Vacuum testing program

Thermo Printer& SD Card

Water quality detecor incl.

Separated steam generator

High quality bacteria filter

Program	121℃ Universal	134℃ Universal	134℃ Universal quick	134℃ Solid	B&D / Helix	Vacuum test
Vacuum Times	3	3	3	1	3	3
Temp (℃)	121	134	134	134	134	/
Pressure(KPA)	110	210	210	210	210	-82
Hold Time(Min.)	20	4	4	4	3.5	/
Drying Time	8	6	4	2	4	/
Cycle Type	B	B	B	S

Warranty:

Two-years warranty for whole machine

Lifetime warranty for chamber

Lifetime maintenance

Standard packing list Q'ty (PCS)

Autoclave 1

Power cable 1

Water drain pipe 2

Tray 2

Tray holder 1

Tray handle 1

Instruction manual 1

The working condition of the autoclave:

* Relative humidity: ≤80%

* Atmospheric pressure: >70kPa;

* Voltage:230VAC, 50Hz, 2500VA

* The highest working pressure: 0.21～0.23MPa

* The highest working temperature: 134～137℃

The requirements of transportation and storage:

* Environmental temperature range: 5~40℃

* Relative humidity: ≤80%

* No corroding gases

Warning:

* Please use a 3-hole socket, and ensure the socket has been connected well with the ground. Do not put the autoclave on a place that the power are difficult to be cut off.

* Do not use power with different voltage with which stated in this manual.

* Do not touch the plug or socket with wet hands.

* Do not pull, change, over-bend or twist the wires, and do not put heavy things on the wires.

* Do not put the autoclave on an unstable table.

* Do not block the door of autoclave, and cover the ventilation holes and radiation holes.

* Do not put anything on the top of autoclave.

* If you find any abnormal smell or sound during operation, please cut off the power immediately and contact your local distributor or us.

1. Application fields:

Dental Clinics, Veterinary (Pet Vet), Tattoo Shap, Nail(beauty) Salon, Laboratory,and so on.

1. Application fields:

Dental Clinics, Veterinary (Pet Vet), Tattoo Shap, Nail(beauty) Salon, Laboratory,and so on.
